BRINELL HARDNESS TESTERS

We are Manufacturer, Supplier, Exporter of Brinell Hardness Testers, Brinell Hardness Testing Machines. Our setup is situated in Kolhapur, Maharashtra, India and majorly we serve customers from African and Gulf countries.


brineel-aie-b-h

Request A Quote
brineel-aie-b-o

Request A Quote

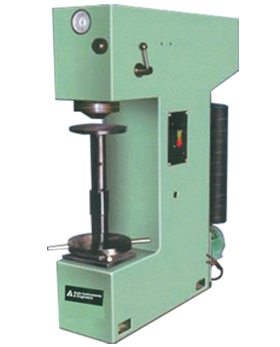

AIE-B 3000 (H) :

Machine designed with a hydraulic power pack and control circuit effortless loading, unloading operation.

A dial gauge in front measure depth of ball penetration. This facilities production testing within tolerance limits by compression method.

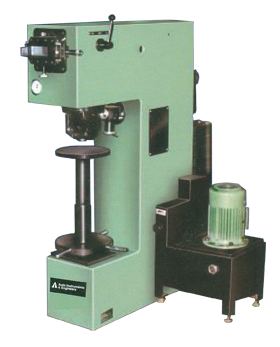

AIE-B 3000 (0) :

Basic machine design & operation similar to B-3000 (H). In addition 'optical device' with 14 x magnification provided in front to project dia of ball impression on glass screen with a micrometer measuring system with 0.01 mm accuracy. The indentor swivels & projects dia of ball impression immediately after unloading operation which avoids additional time for measurement of ball im


Models : AIE-B 3000 (H), AIE-B 3000 (0)

AlE Hardness Testers, Model 8-3000 (H) & Model 3000 (0) are precision engineered confirming to IS:2281-1968, 8S:240 and ASTM:E 10, however 8-3000 (H) & Model 3000 (0) are most suitable for production testing. These machines are designed to measure hardness of castings, forgings, other metals and alloys of all kinds, hard or soft, whether flat, round or irregular in shape.

TECHNICAL DATA
MODEL
AIE-B-3000 (H)
AIE-B-3000 (0)
Loads (kgf)
250
NIL
Max. Test Height (mm)
410
380
Depth ofThroat (mm)
200
200
Max. depth of elevating screw below base (approx.) (mm)
180
180
Machine Height (approx.) (mm)
1127
1185
Net Weight (approx.) (kg)
450
500
Drive Motor (HP)
0.33
0.33
Mains Supply (V/cy/ph)
415/50/3
415/50/3
Optical Device
NIL
Direct reading optical device with 14 x magnification
STANDARD ACCESSORIES
MODEL
AIE-B-3000 (H)
AIE-B-3000 (0)
Testing table 200mm dia
1 pc.
1 pc.
Testing table 70mm dia with 'V' groove for round jobs - 10 to 80mm dia
1 pc.
1 pc.
Ball Holder 5mm
1 pc.
1 pc.
Ball Holder 10mm
1 pc.
1 pc.
Test Block HB-5/750
1 pc.
1 pc.
Test Block HB-10/3000
1 pc.
1 pc.
Brinell Microscope
1 pc.
NIL
Allen Spanner
7 pcs.
4 pcs.
Telescopic Cover for elevating screw protection
1 Set
1 Set
Instruction Manual
1 Book
1 Book

Due to constant improvement of the product, AlE reserves all rights to change the above specifications without any prior notice.
