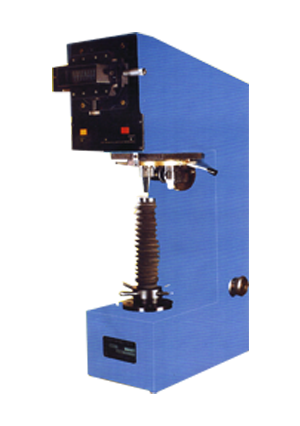

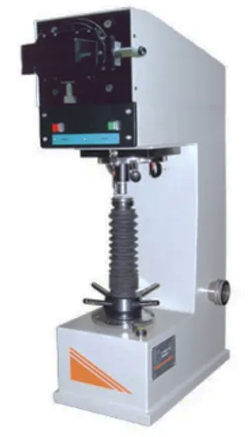

VICKERS HARDNESS TESTERS ( AIE-VM-50 )

We are Manufacturer, Supplier, Exporter of Vickers Hardness Testers, Vickers Hardness Testing Machines. Our setup is situated in Kolhapur, Maharashtra, India and majorly we serve customers from African and Gulf countries.


Features :
  • Very wide testing range from soft metal like lead up to hardest metals like hardened steel.
  • Small indentation to allow testing of precision finished parts.
  • Motorised loading and unloading.
  • Suitable for thin sheet metals since test loads are very small.
  • Built - in projection screw to get accurate results.

Auto Instruments & Engineers Vickers Hardness Tester is a simple & accurate means to produce and measuring the diamond indentation.

These testers are suitable for measuring the hardness of precision metallic parts with wide testing range-from soft to hard, and their accurate results are widely acclaimed.

These testers strictly conform to IS: 1754 - 1986

vickers-hardness-testers
Request A Quote

Technical Data :
Test loads-
5,10,20,30,50kg. 1kg (Optional)
Magnification of optical projection
70x,140x (Optional
Maximum test height (mm) -
200
Scale Least Count (mm) -
0.001
Throat Depth (mm) -
135
Machine dimension (mm)
L585 x W290 x H860
Weight (approx) -
70kg
Power supply
220 VAC, 50Hz, 1-Phase
Construction :

The robust machine frame is designed to accommodate the high precision loading system and an optical projection screen. Specimen is placed on a testing table.

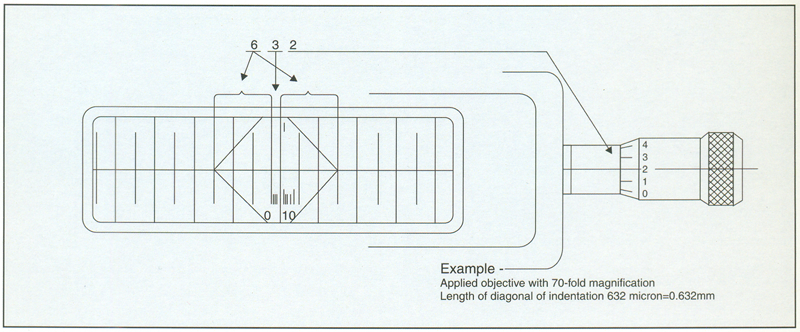

The test cycle is fully automatic. The accurate load is applied on a diamond penetrator by means of automatically. The objective is indexed with the test piece and the diamond indentation is projected on the measuring screen. The diagonals of the indentation are measured by means of the micrometer screw of the projection screen

Standard Accessories :
1. Standard Test Block
1Pc.
2. Diamond Penetrator
1Pc.
3. Weights
1Set.
4. Flat anvil
1Pc.
5. Vee-type anvil (small & Big)
1Pc.
6. Spanners
1Pc
7. Electric Cord
1Pc.
8. Instruction manual
1Book

 Number of Special Accessories are available on request and as per special requirement.
vm-50

Due to constant Research & Development, Specifications and Features are subject to change without notice
