COMPUTERISED COMPRESSION TESTING MACHINES

We are Manufacturer, Supplier, Exporter of Computerised Compression Testing Machines. Our setup is situated in Kolhapur, Maharashtra, India and majorly we serve customers from African and Gulf countries.

Computerised Hydraulic Machine for compression tests on concrete specimens The machine meets the essential requirements of various Indian, British & American standards for compression tests.


Features :
  • Load applied through Hydraulic pumping unit.
  • Each frame tested for stability and alignment to avoid tension failure during a test and to ensure center loading
  • Two plates provided along with spacer which rest on piston.
  • A precise large diameter spherical upper platen for optimum results
  • Variety of optional accessories for cubes, blocks, bricks and flexure test available
  • Motorized hydraulic power pack or pumping unit with rapid approach and automatic over load protection
  • Digital Load indicator with RS 232 interface for connection to windows 10 based computer system
  • Available in various capacities ranging from 1000KN to 3000KN

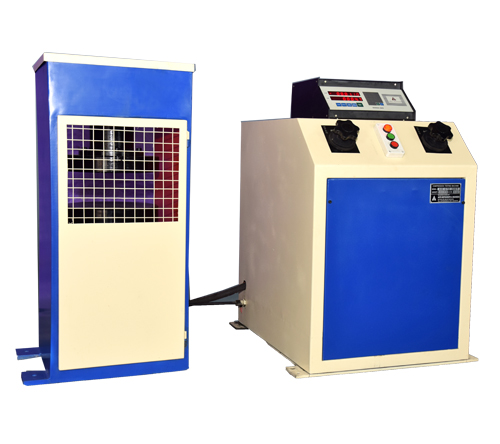

Computerised Compression Testing Machines
Request A Quote
Technical Specification :

Model
AIE - CTM100
AIE - CTM150
AIE - CTM200
AIE - CTM300
Capacity 1000kN 1500kN 2000kN 3000kN
Least Count 1kN 1kN 1kN 1kN
Vertrical Daylight 310 (Adj) 310 (Adj) 410 (Adj) 460 (Adj)
Horizontal Clearance (mm) 260 260 330 380
Platen Diameter 220 250 300 300
Ram Diameter (mm) 165 181 245 260
Ram Travel (mm) 50 50 75 75
Motor H.P. 1 1 2 HP 2 HP
Motor Voltage 440V, 3Ph, 50Hz 440V, 3Ph, 50Hz 440V, 3Ph, 50Hz 440V, 3Ph, 50Hz
Specimen Size (Can be Tested):
Cube 100mm, 150mm 100mm, 150mm 100mm, 150mm 200mm 100mm, 150mm 200mm
Cylindrical 100mm X 200mm 150mm X 300mm 100mm X 200mm 150mm
X 300mm 		100mm X 200mm 150mm
X 300mm 		100mm X 200mm 150mm
X 300mm
