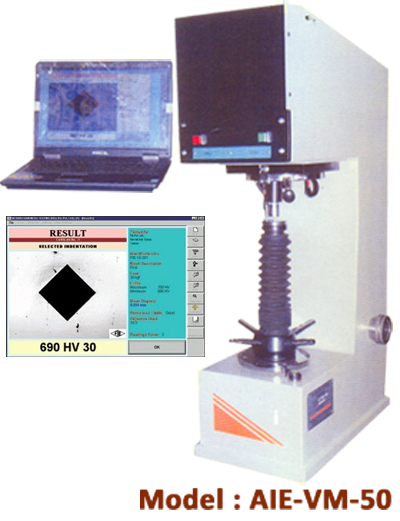

COMPUTERISED VICKERS HARDNESS TESTERS -VAIE VM-50

We are Manufacturer, Supplier, Exporter of Computerised Vickers Hardness Testers, Computerised Vickers Hardness Testing Machines. Our setup is situated in Kolhapur, Maharashtra, India and majorly we serve customers from African and Gulf countries.

Features :
  • Fully Computerised (PC Based) Vickers Hardness Machine.
  • Direct and accurate measurement of Vickers Hardness Number using “State of Art” image processing technology.
  • High accuracy and repeatability of measurement at all loads.
  • Faster measurement yielding to higher productivity.
  • Motorised loading and unloading cycle.
  • Small loads allow testing thin sheet metals.
  • ‘Wide testing range’: from soft metal such as lead up to medium hardened steels.
  • Small size of indentation makes it a non-destructive testing on finished components.
  • Advanced Windows 7 or 10 software.
c-vickers

Request A Quote
Latest GUI Features :
  • Online indentation setting and focusing on PC monitor.
  • User-friendly software with all help file and Window Features.
  • Advance image processing: Algorithms implemented for precise calculation of hardness numbers with various options to cover all ranges of specimen.
PC Requirements :
  • Can be connected to Laptop or Desktop PC. Easy to carry anywhere and handy for use with easy setup.
  • Minimum Pentium-II with 64 Mb RAM.
  • Windows 7 or 10 Operating System. (PC not included in standard scope of supply.)
  • One USB 2.0 and one Rs232 (serial) interface (9 pin) is required and it is recommended for Laptop to use external.
  • USB to serial converter for Rs 232 interface.
Batch File Processing :
  • Option for data/storage and reports generation.
Statistical Evaluation :
  • Software for calculating standard deviation, mode medium, histogram etc.
SPECIFICATIONS UNIT AIE-VM-50 (PC)
Total Loads kg. 5, 10, 20, 30 & 50
Max. Testing Height mm 200
Scale least count mm 0.001
Throat Depth mm 135
Machine Dimensions (Approx.) mm L 585 x W 290 x H 860
Net Weight (Approx.) kg. 70
Power supply - 220 V, 50 Hz, 1 Phase
